Power Generating Equipment [ Nuclear ]
Reactor Pressure Vessel
|

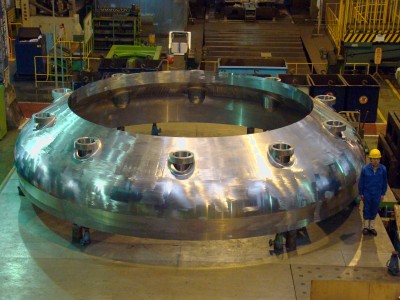

Bottom Petal |

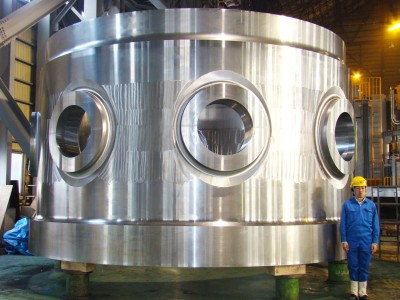

EPR Nozzle Shell |

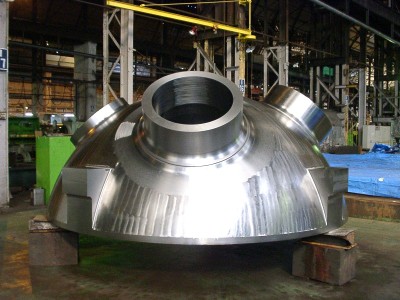

EPR Primary Head |
| Image |
 |
 |
 |
| Dimension(mm) |
7,625(od) x 1,640(H) mm |
5,805(od) x 3,470(H) mm |
3,750(od) x 1,535(H) mm |
| Weight |
80ton |
169ton |
23ton |
| Material |
ASME SA508, Cl.3 |
RCC-M 16MND5 |
RCC-M 20MND5 |
Others
|

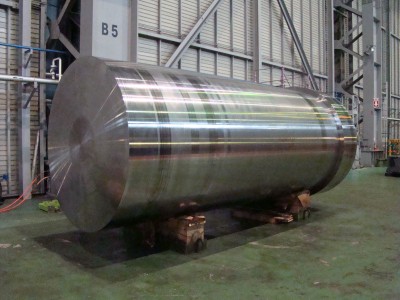

Monoblock Type Cask |

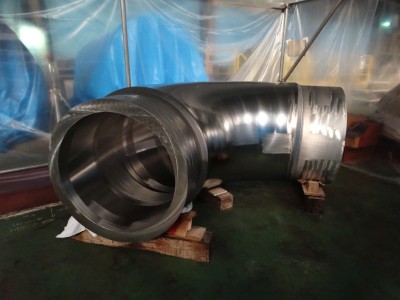

Piping/90° Elbow |
|
| Image |
 |
 |
|
| Dimension(mm) |
2,312(od) x 5,262(H) mm |
1,007(od) / 100(T) / 1,124(Radius) mm |
|
| Weight |
62ton |
5.5ton |
|
| Material |
JSME GLF1 |
SUS304 |
|
